FEULING PARTS Camchest Kit – 487 – Chain Drive – Water Cooled – Race Series® Lifters – M8 7273

Description

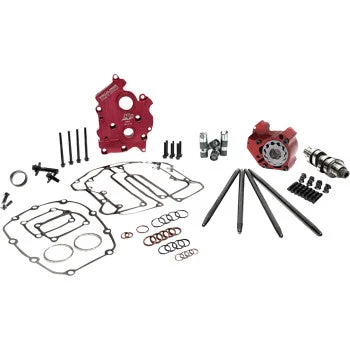

• 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• 487 Reaper Camshaft
• Bolt-in
• Chain Drive
• Camshaft for 114″ and 117″ engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• RPM range 2,250 – 6,100
• Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
• Cam Installation Kit
• Includes cam bearing, cam/crank hardware and gasket/O-ring kit
• Race Series® Lifters
• Hydraulic roller lifters, standard OD (0.8420-0.8423)
• Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
• One Piece Pushrods
• Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
• Race Series® Oil Pump
• Increase oil pressure, scavenge volume and engine oil flow
• 30% more pressure gear volume over stock
• 53% more scavenge gear volume over stock
• 42% more scavenge volume with port sizing, matched passages and holes to the engine case
• 46% more oil volume to the crankshaft and connecting rod bearing
• 15°- 25° cooler engine temperatures
• 15°- 30° cooler oil temperatures
• 10-30 more PSI of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Magnets in oil pump to help protect gears and pressure relief valve
• Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
• FEULING test results show a 50% reduction of engine sump oil level
• High Flow Camplate
• Billet 7075 aluminum
• Bolts into stock location
• Made in the USA
• Feuling does not recommend tuning beyond stock emissions standards.


  Fitments

  2024	Harley-Davidson	RA1250SE CVO Pan America 1250	–	–
  2022	Harley-Davidson	FLTRKSE CVO Road Glide Limited	–	–
  2021-2024	Harley-Davidson	RA1250 Pan America 1250	–	–
  2021-2024	Harley-Davidson	RA1250S Pan America 1250 Special	–	–
  2021-2024	Harley-Davidson	RH1250S Sportster S	–	–
  2020-2022	Harley-Davidson	FLHTCUTGSE CVO Tri Glide	–	–
  2018-2022	Harley-Davidson	FLTRXSE CVO Road Glide	–	–
  2017-2024	Harley-Davidson	FLHTCUTG Tri Glide Ultra	–	–
  2017-2024	Harley-Davidson	FLHTK Ultra Limited	–	–
  2017-2022	Harley-Davidson	FLHXSE CVO Street Glide	–	–
  2017-2021	Harley-Davidson	FLHTKSE CVO Limited	–	–
  2017-2019	Harley-Davidson	FLHTKL Ultra Limited Low	–	–
  2017-2019	Harley-Davidson	FLTRU Road Glide Ultra	–	–

  Fitment Disclosure

  This quick reference fitment information is provided to direct you to our catalog information and the manufacturer’s information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
